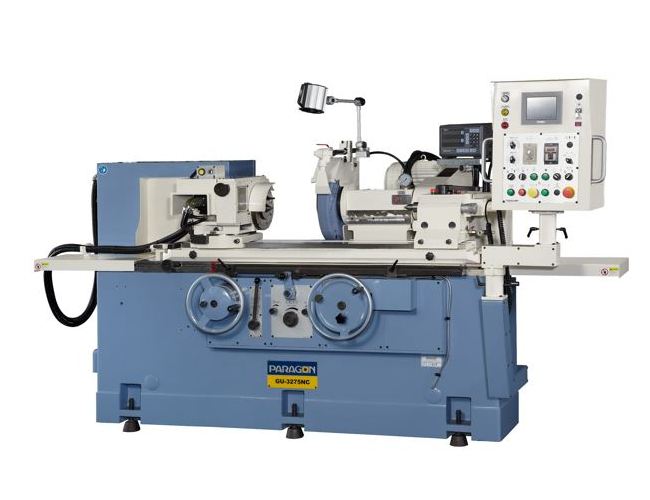

External / OD Grinding Machine - Heavy Duty
OPTIONAL:
- Internal Grinding Attachment
- Automatic Plunge & Traverse Grinding Cycle
- Wheelhead spindle with Anti Friction bearings.
- Inprocess gauging system
Specifications
| SPECIFICATIONS: | |||
| Max. Grinding Diameter | mm | 300 | |
| Centre Height | mm | 200 / 250 | |
| Swing Diameter | mm | 395 / 495 | |
| Max. weight on Live spindle | kg | 60 | |
| Max. Grinding Length | mm | 800 / 1000 / 1200 / 1500 | |
| Grinding Wheel Dia. | mm | 400 / 500 | |
| Grinding wheel width | mm | 50 / 63 | |
| Workhead centre | MT | 5 | |
| Tailstock centre | MT | 5 | |
Highlights:
- "Mind Automation Industries" External Grinding Machines - Heavy Duty are of robust design and for heavy load applications especially on Live spindle grinding.
- These machines are with high power, and guarantee outstanding accuracy.
Features:
- Heavy duty Workhead with Antifriction bearings for heavy load on live spindle
- Slide ways coated with 'TURCITE-B'
- Hydrodynamic bearings for wheel spindle
- Centralized Lubrication System
