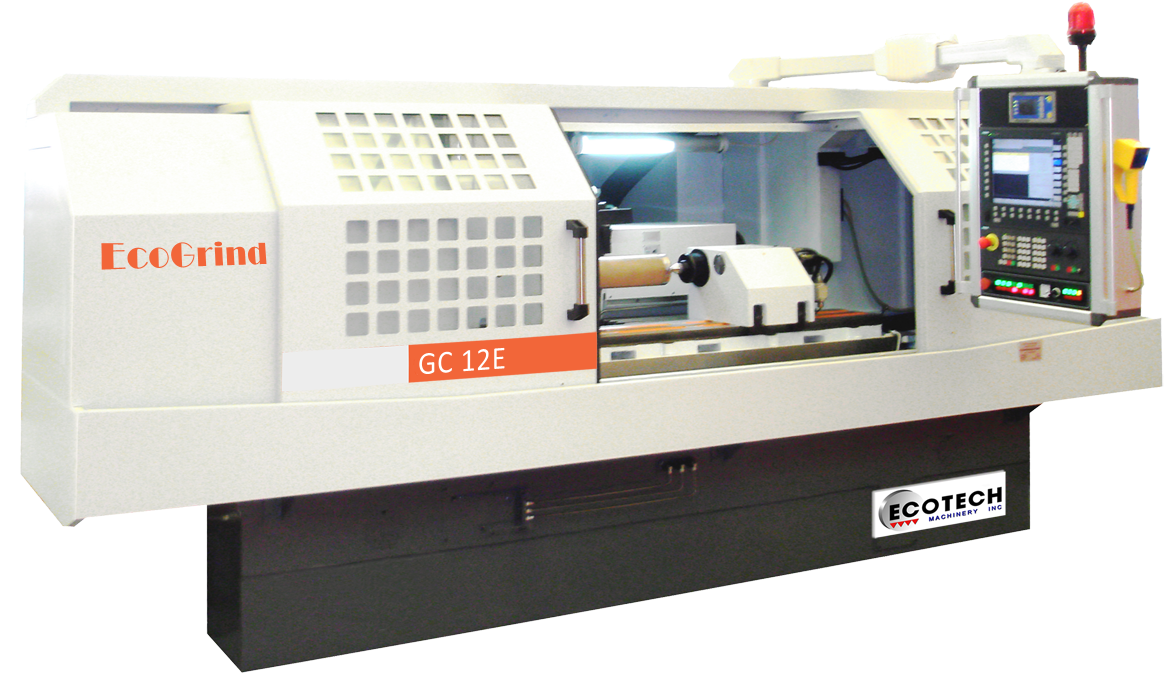

CNC Cylindrical Grinding Machine - Straight
OPTIONAL SYSTEMS: In-Process Gauge, Flagging Device, Automatic Wheel Balancing System, Gap & Crash Control System
AUTOMATION / COMPONENT HANDLING OPTIONS: Robotic pick and place loading system or Auto Loader Gantry
Specifications(SWIFT Series) :
| GENERAL | ||
| Centre height | mm | 150 / 200 / 250 |
| Max. Grinding Length | mm | 500 / 800 / 1000 / 1250 / 1500 |
| CNC System | SIEMENS / FANUC / MITSUBISHI | |
| Rapid feed (X & Z axes) | mm/min | 7000 |
| Min. incremental feed (X & Z axes) | mm | 0.001 |
| GRINDING WHEEL HEAD | ||
| Grinding wheel diameter | mm | 400 / 450 / 500 / 600 |
| Grinding wheel width | mm | 50 / 63 / 80 / 120 |
| Wheel surface speed | m/sec | 33 / 45 |
| Motor power | hp | 5 / 7.5 / 10 |
| WORK HEAD | ||
| Speed range (stepless) | rpm | 20 - 350 |
| Spindle nose taper | MT | 4 / 5 |
| TAILSTOCK | ||
| Tailstock centre | MT | 4 / 5 |
Highlights:
- SWIFT CNC Cylindrical Grinders are new generation machines, defining precision with high speed grinding.
- These machines guarantee outstanding accuracy with ease of operation and quick set-up change feature.
- Several plunge & traverse grinding operations (multiple steps) can be performed on the component in the same set-up, without unloading.
Features:
- Simultaneous control of 2 axes and 1 spindle (work head) through CNC
- Cartridge type grinding wheel spindle operating at 45 m/sec cutting speed and with precision Anti-friction bearings
- CNC controlled constant surface speed (CSS) of work piece & Gr. wheel
